1.3x · prime

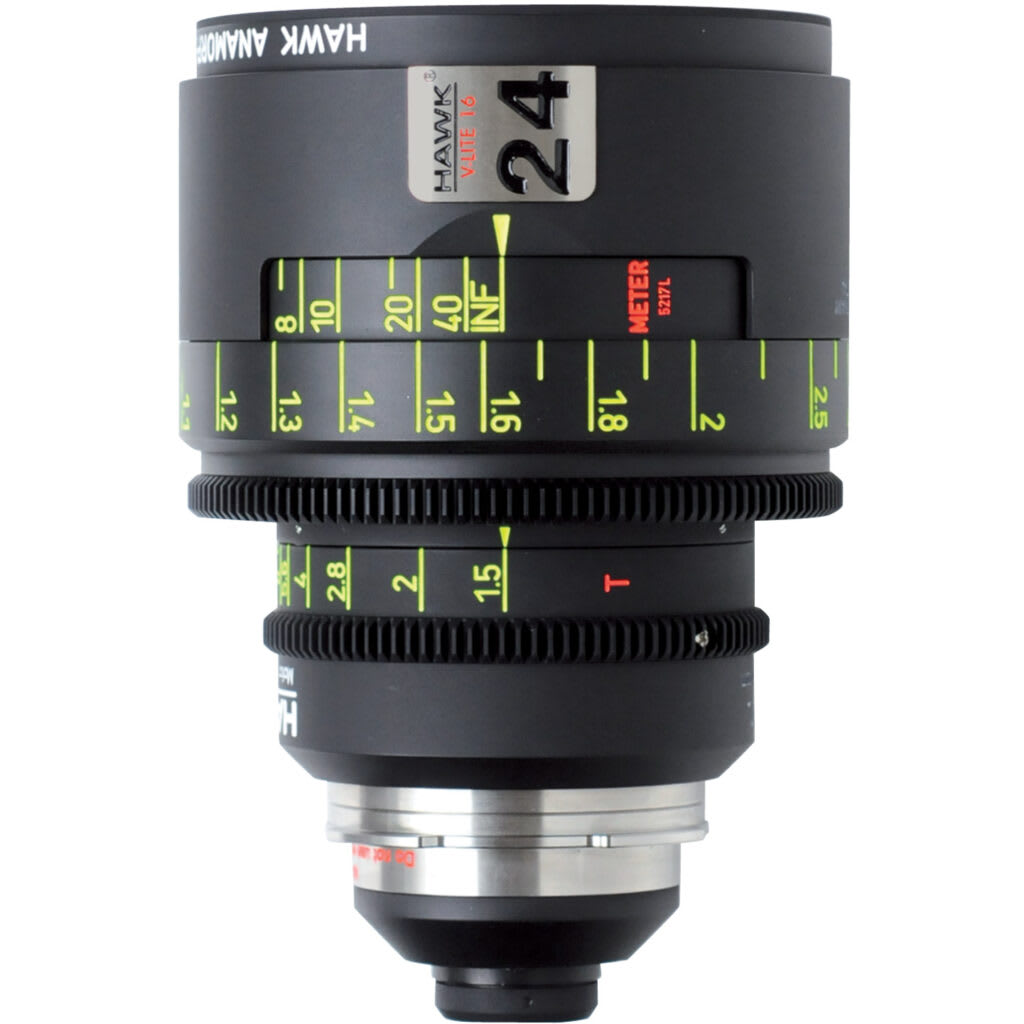

Hawk V-Lite16 Anamorphics
T1.5 high-speed anamorphic lenses for Super 16mm format. Five primes smaller than most spherical lenses on the market, yet offering the same stunning performance as all Hawk anamorphics. Finally, cinematographers and operators can work with compact S16 lenses that are every bit as good as their 35mm counterparts. Distinctive 1.3x anamorphic look with high contrast and a gentle squeeze ideal for S16 and smaller format digital cameras.
- S16 Format Coverage
- 1.3x Anamorphic Squeeze
- Compact Design
- T1.5 Speed
- Oval Bokeh
Focal Lengths
5
T-Stop
T1.5
Squeeze
1.3x
Format
Super 16
Technical Data
HAWK V-LITE16 ANAMORPHICS| Lens | Focal Length / Stop | CFD | MOD | AoV H° | Weight | Front Ø | Overall Length | Min. Filter | Image Diagonal | Illum. Diagonal |
|---|---|---|---|---|---|---|---|---|---|---|
| Hawk V-Lite16 14 | 14mm / T1.5 | 2'7" | 2'1" | 62.8° | 4.2 lbs | 120mm | 148mm | 4×5.65" | 14mm | 15mm |
| Hawk V-Lite16 18 | 18mm / T1.5 | 3'3" | 2'7" | 44.2° | 6.2 lbs | 120mm | 181mm | 4×5.65" | 15mm | 15.5mm |
| Hawk V-Lite16 24 | 24mm / T1.5 | 3'3" | 2'8" | 38° | 4.4 lbs | 104mm | 163mm | 4×5.65" | 15.5mm | 16.5mm |
| Hawk V-Lite16 28 | 28mm / T1.5 | 3'3" | 2'8" | 31.8° | 4.6 lbs | 104mm | 166mm | 4×5.65" | 17mm | 17.5mm |
| Hawk V-Lite16 35 | 35mm / T1.5 | 3'3" | 2'7" | 25.2° | 4.6 lbs | 104mm | 168mm | 4×5.65" | 19mm | 20mm |
Angle of view – quoted for S16 format (12.44 × 7.00 mm – 2.40:1 Release Format – Sensor size ALEXA 35)
Shot on Hawk V-Lite16
All Credits →
